| Place of Origin: | China |
| Brand Name: | GZ Bravo |
| Certification: | ISO 9001:2015 |
| Model Number: | RNB501580 RNB501250 |
| Minimum Order Quantity: | 20 |
|---|---|
| Packaging Details: | 100 pieces in one carton box |
| Delivery Time: | 3-15days |
| Payment Terms: | T/T, Western Union,Credit Card, Ali Pay, Word First,etc. |
| Supply Ability: | 10000 Pieces/Months |
| Item: | Air Suspension Repair Kit | OEM No.: | RNB501620 LR019993 |
|---|---|---|---|
| Material: | Natural Rubber, Chloroprene Rubber,Cord Fabrics | Vehicle For: | Land Rover Range Rover Discovery 3 LR3 LR4 |
| Layers: | 4 Layers | Length: | 340 MM |
| Thickness: | 3.0 MM | A-OD: | 122 |
| B-OD: | 96 | Function: | Repair Discovery 3 Front Air Shock |
| High Light: | Rnb501580 airbag bellows,Rnb501250 airbag bellows,Lr019993 |
||
DISCOVERY 3 LR3 LR4 RANGE ROVER FRONT RUBBER SLEEVE AIR SUSPENSION REPAIR KITS RNB501580 RNB501250 RNB501620 LR019993
PRODUCT DESCRIPTION

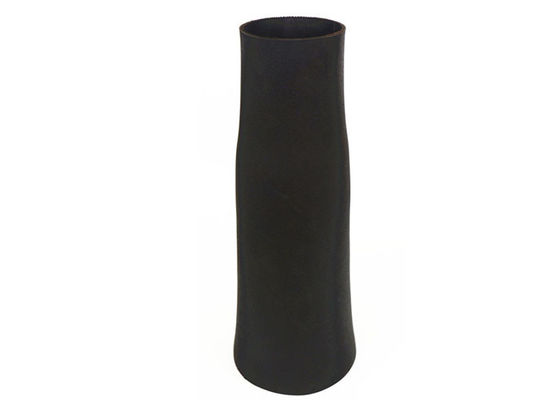

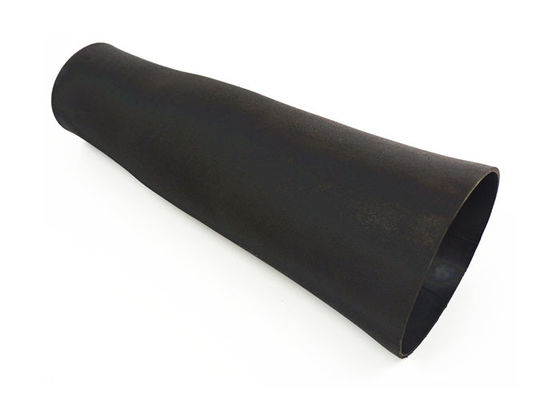

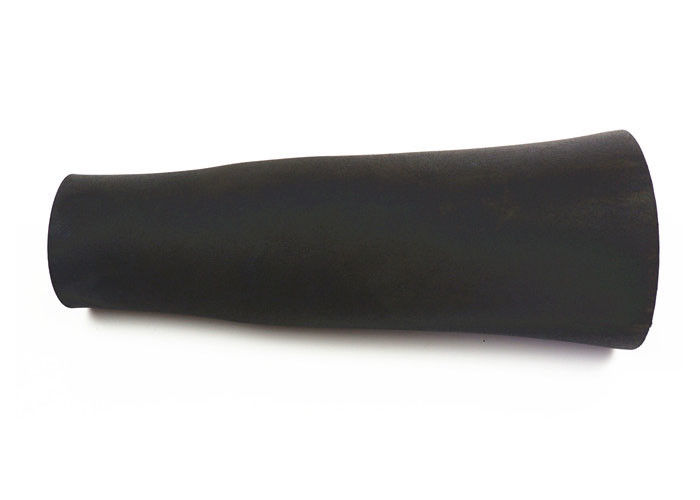

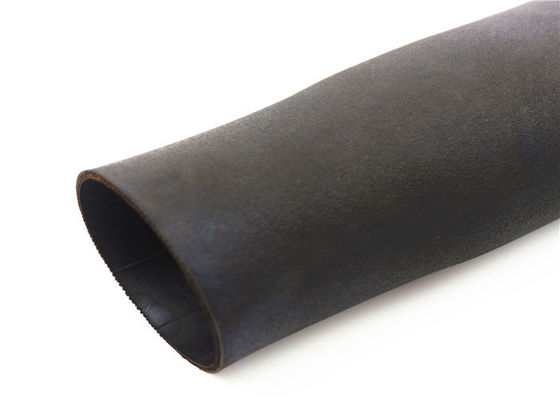

GZ Bravo's discovery 3 front rubber sleeve mostly consists of 4 layers, one layer inner rubber, two layers cord fabrics and one outer rubber. The rubber use the imported Malaysia natural rubber and Chloroprene rubber. And the cord fabrics use the famous "Shenma" brand. Because of the strict raw material control and advanced technology, so our rubber sleeves can meet the same performance standard as Germany-made original rubber bellows. Only good rubber sleeve can support air suspension spring or air suspension shock long life.
| Item | Air Suspension Repair Kit |
| Vehicle For | Land Rover Range Rover Discovery 3 LR3 LR4 Front |
| OEM Numbers | RNB501580 RNB501250 RNB501620 LR019993 |
| Material | Natural Rubber, Chloroprene rubber,Cord Fabrics |
| A-End-Diameter | 122 MM |
| B-End-Diameter | 96 MM |
| Length | 340 MM |
| Thickness | 3.0 MM |
| Layers | 4 Layers |
| Hardness | Soft, High quality |
PRODUCT FIT FOR
2009 LR3 HSE Sport Utility 4-Door 4.4L 4394CC V8 GAS DOHC Naturally Aspirated
2009 LR3 SE Sport Utility 4-Door 4.0L 4009CC 245Cu. In. V6 GAS SOHC Naturally Aspirated
2009 LR3 SE Sport Utility 4-Door 4.4L 4394CC V8 GAS DOHC Naturally Aspirated
2008 LR3 HSE Sport Utility 4-Door 4.4L 4394CC V8 GAS DOHC Naturally Aspirated
2008 LR3 SE Sport Utility 4-Door 4.0L 4009CC 245Cu. In. V6 GAS SOHC Naturally Aspirated
2008 LR3 SE Sport Utility 4-Door 4.4L 4394CC V8 GAS DOHC Naturally Aspirated
2007 LR3 HSE Sport Utility 4-Door 4.4L 4394CC V8 GAS DOHC Naturally Aspirated
2007 LR3 SE Sport Utility 4-Door 4.0L 4009CC 245Cu. In. V6 GAS SOHC Naturally Aspirated
2007 LR3 SE Sport Utility 4-Door 4.4L 4394CC V8 GAS DOHC Naturally Aspirated
2006 LR3 Base Sport Utility 4-Door 4.0L 4009CC 245Cu. In. V6 GAS SOHC Naturally Aspirated
2006 LR3 HSE Sport Utility 4-Door 4.4L 4394CC V8 GAS DOHC Naturally Aspirated
2006 LR3 SE Sport Utility 4-Door 4.0L 4009CC 245Cu. In. V6 GAS SOHC Naturally Aspirated
2006 LR3 SE Sport Utility 4-Door 4.4L 4394CC V8 GAS DOHC Naturally Aspirated
2005 LR3 HSE Sport Utility 4-Door 4.4L 4394CC V8 GAS DOHC Naturally Aspirated
2005 LR3 SE Sport Utility 4-Door 4.0L 4009CC 245Cu. In. V6 GAS SOHC Naturally Aspirated
2005 LR3 SE Sport Utility 4-Door 4.4L 4394CC V8 GAS DOHC Naturally Aspirated
2014 LR4 Base Sport Utility 4-Door 3.0L 2995CC 183Cu. In. V6 GAS DOHC Supercharged
2014 LR4 HSE Lux Sport Utility 4-Door 3.0L 2995CC 183Cu. In. V6 GAS DOHC Supercharged
2014 LR4 HSE Sport Utility 4-Door 3.0L 2995CC 183Cu. In. V6 GAS DOHC Supercharged
2013 LR4 Base Sport Utility 4-Door 5.0L 5000CC V8 GAS DOHC Naturally Aspirated
2013 LR4 HSE Lux Sport Utility 4-Door 5.0L 5000CC V8 GAS DOHC Naturally Aspirated
2013 LR4 HSE Sport Utility 4-Door 5.0L 4999CC 305Cu. In. V8 GAS DOHC Naturally Aspirated
2013 LR4 HSE Sport Utility 4-Door 5.0L 5000CC V8 GAS DOHC Naturally Aspirated
2013 LR4 SE Sport Utility 4-Door 5.0L 4999CC 305Cu. In. V8 GAS DOHC Naturally Aspirated
2012 LR4 Base Sport Utility 4-Door 5.0L 5000CC V8 GAS DOHC Naturally Aspirated
2012 LR4 HSE Sport Utility 4-Door 5.0L 4999CC 305Cu. In. V8 GAS DOHC Naturally Aspirated
2012 LR4 HSE Sport Utility 4-Door 5.0L 5000CC V8 GAS DOHC Naturally Aspirated
2012 LR4 SE Sport Utility 4-Door 5.0L 4999CC 305Cu. In. V8 GAS DOHC Naturally Aspirated
2011 LR4 Base Sport Utility 4-Door 5.0L 5000CC V8 GAS DOHC Naturally Aspirated
2011 LR4 HSE Sport Utility 4-Door 5.0L 4999CC 305Cu. In. V8 GAS DOHC Naturally Aspirated
2011 LR4 HSE Sport Utility 4-Door 5.0L 5000CC V8 GAS DOHC Naturally Aspirated
2011 LR4 SE Sport Utility 4-Door 5.0L 4999CC 305Cu. In. V8 GAS DOHC Naturally Aspirated
2010 LR4 HSE Sport Utility 4-Door 5.0L 5000CC V8 GAS DOHC Naturally Aspirated
2010 LR4 SE Sport Utility 4-Door 5.0L 5000CC V8 GAS DOHC Naturally Aspirated
2010 LR4 V8 Sport Utility 4-Door 5.0L 5000CC V8 GAS DOHC Naturally Aspirated
2009 LR3 HSE Lux Sport Utility 4-Door 4.4L 4394CC V8 GAS DOHC Naturally Aspirated
REFERENCE OE/OEM NUMBER
LR019993
LR019994
LR052867
LR018172
LR018190
LR018191
LR018376
LR032647
RNB501580
RNB501180
RNB501310
RNB501220
RNB501250
RNB501600
RNB501610
RNB501620
GZ BRAVO AIR SUSPENSION RUBBER SLEEVE MAIN CATALOGUE
| NO. | Car Brand | Car Model | Position | Length (MM) | SIZE ( Units MM) | ||
| Thickness (MM) | A-Outside Diameter | B Outside diameter | |||||
| A-OD | B-OD | ||||||
| 1 | Mercedes-Benz | W164/W251 | Front | 340 | 3.00 | 133 | 101 |
| 2 | Mercedes-Benz | W164/W251 | Rear | 360 | 3.00 | 137 | 106 |
| 3 | Mercedes-Benz | W220 | Front | 145 | 2.00 | 125 | 92 |
| 4 | Mercedes-Benz | W220 | Rear | 300 | 2.00 | 101 | 88 |
| 5 | Mercedes-Benz | W221 | Front | 145 | 2.00 | 128 | 96 |
| 6 | Mercedes-Benz | W221 | Rear | 155 | 2.00 | 132 | 96 |
| 7 | Mercedes-Benz | W211 | Front | 210 | 3.00 | 126 | 85 |
| 8 | AUDI | A6C5 | Front | 355 | 3.00 | 122 | 98 |
| 9 | AUDI | A6C5 | Rear | 400 | 3.00 | 105 | 95 |
| 10 | AUDI | A6C6 | Front | 190 | 2.50 | 124 | 88 |
| 11 | AUDI | Q7/Cayenne | Front | 260 | 3.00 | 144 | 94 |
| 12 | AUDI | Q7/Cayenne | Rear | 270 | 3.00 | 132 | 84 |
| 13 | AUDI | A8D3 | Front | 230 | 2.50 | 126 | 85 |
| 14 | AUDI | A8D3/Panamera | Rear | 230 | 3.00 | 122 | 96 |
| 15 | AUDI | A8D4 | Front | 190 | 2.50 | 126 | 88 |
| 16 | AUDI | A8D4 | Rear | 230 | 3.20 | 126 | 96 |
| 17 | BMW | E66 | Rear | 300 | 2.00 | 101 | 88 |
| 18 | BMW | E70 | Rear | 345 | 3.20 | 102 | 98 |
| 19 | BMW | E53 | Front | 310 | 3.00 | 140 | 96 |
| 20 | BMW | E53 | Rear | 340 | 3.00 | 128 | 80 |
| 21 | BMW | E39 | Rear | 287 | 3.00 | 127 | 80 |
| 22 | BMW | GT/E61 | Rear | 350 | 3.00 | 80 | 80 |
| 23 | BMW | F02/Phaeton Front | Rear | 200 | 2.50 | 128 | 93 |
| 24 | Land Rover | L322 | Front | 400 | 3.20 | 167 | 101 |
| 25 | Land Rover | Discover 3/Sport | Front | 340 | 3.00 | 122 | 96 |
| 26 | Land Rover | Discover 3/Sport | Rear | 310 | 2.80 | 162 | 96 |
| 27 | Porsche | Panamera | Front | 230 | 3.00 | 132 | 84.00 |
| 28 | Jaguar | XJ60,XJ70 | Front | 225 | 2.00 | 101 | 91 |
| 29 | Jaguar | XJ60,XJ70 | Rear | 225 | 2.00 | 101 | 91 |
