| Place of Origin: | Guangzhou,China |
| Brand Name: | GZ Bravo |
| Certification: | ISO 9001:2015 |
| Model Number: | 4G0616005C |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Packaging Details: | Neutral Packing: One piece in one inner brown box, 10 pieces per brown strong carton box. |
| Delivery Time: | 3-15 Days |
| Payment Terms: | T/T, Western Union,Credit Card, Ali Pay, Word First,etc. |
| Supply Ability: | 6000 Pieces/Month |
| Type: | Air Suspension Valve ; Air Suspension Valve Block | OEM No.: | 4G0616005C |
|---|---|---|---|
| Reference No.: | 4H0616013A | Vehicle For: | For Audi A6 S6 Allroad A7 S7 RS7 A8 S8 D4 |
| Condition: | Brand New | Material: | Rubber Steel Aluminum |
| Function: | Gas Distributing Device | Classify: | Air Suspension System, Air Suspension Chassis System, Car Air Suspension System |
| N.W: | 0.6 KG | G.W: | 1 KG |
| High Light: | Audi S8 control valve block,4g0616005c control valve block,4g0616005c |
||

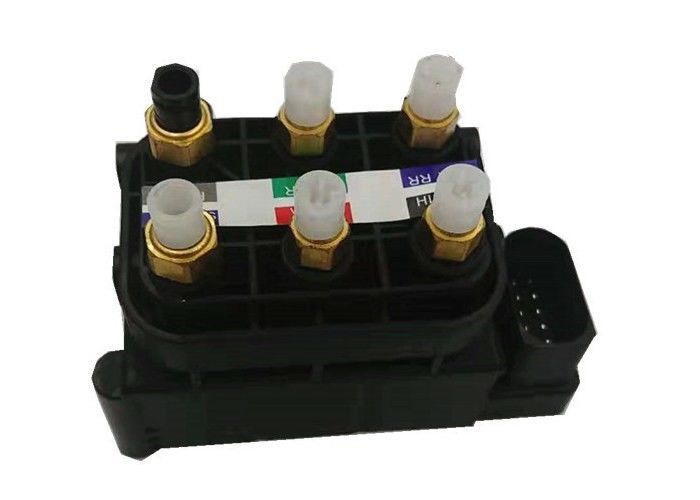

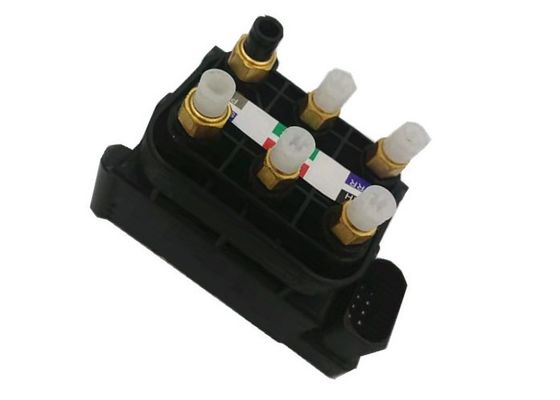

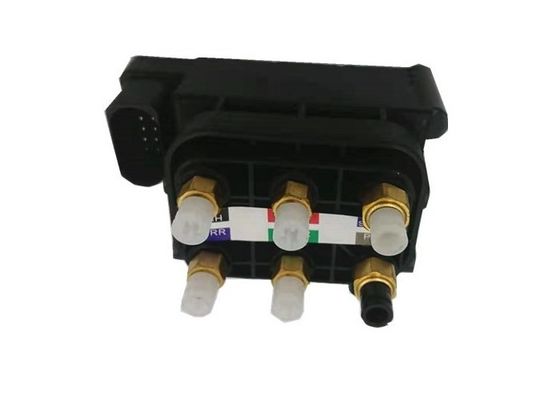

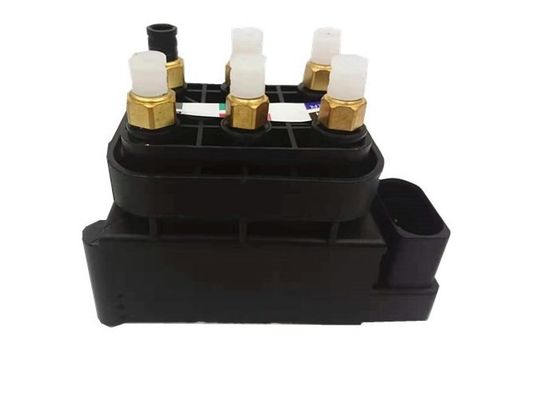

Audi A6 S6 Allroad A7 S7 RS7 A8 S8 D4 Air Suspension Compressor Valve Block 4G0616005C
Product Information:
| Model: | Audi A6 S6 Allroad A7 S7 RS7 A8 S8 D4 |
| OEM: | 4G0616005C 4H0616013A 4H0616013 |
| Material: | Rubber Steel Aluminum |
| Condition: | Brand New |
| Delivery: | 3-15 days |
| Place of origin | Canton, China |
| Warranty: | 12Months |
| Gross weight: | 1KG |
Reference OE/OEM Number:
4G0616005C
4H0616013A
4H0616013
What happens if the Air Suspension Valve Control Unit failured?
If the Air Suspension Valve Control Unit failed, air may be leaked back to the compressor or the central air reservoir. This can cause the vehicle to not maintain the ride height required. So the failed valve block should be replaced asap.
It does not take very ling to replace this part and you can complete it by yourself !
Just follow these steps to complete the replacement:
1. Drain AIRmatic system using Diagnosis;
2. Remove compressor; Detach plug from AIRmatic pressure sensor;
3. Detach valve unit connector; Undo pressure line terminals;
4. Undo nuts (arrows) and remove level control;
5. Remove rubber buffer to level control valve;
6. Install in the reverse order; Fill AIRmatic system using Diagnosis;
7. Check AIRmatic for leaks.
