| Place of Origin: | China |
| Brand Name: | GZ Bravo |
| Certification: | ISO 9001:2015 |
| Model Number: | Rtd501090 Rpd500880 |
| Minimum Order Quantity: | 20 |
|---|---|
| Packaging Details: | 100 pieces in one carton box |
| Delivery Time: | 3-15days |
| Payment Terms: | T/T, Western Union,Credit Card, Ali Pay, Word First,etc. |
| Supply Ability: | 10000 Pieces/Months |
| Item: | Air Suspension Repair Kit | OEM No.: | LR023234 LR023235 |
|---|---|---|---|
| Material: | Natural Rubber, Chloroprene Rubber,Cord Fabrics | Vehicle For: | Land Rover Range Rover Discovery 3 LR3 LR4 |
| Layers: | 4 Layers | Length: | 310 MM |
| Thickness: | 2.8 MM | A-OD: | 162 |
| B-OD: | 96 | Function: | Repair Discovery 3 Rear Air Suspension |
| High Light: | Rtd501090 Air Suspension Repair Kit,Rtd501090 air suspension sleeve,Rpd000306 |
||

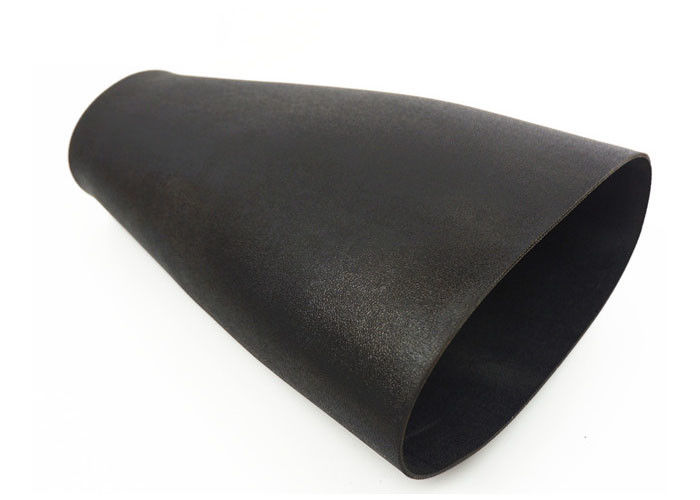

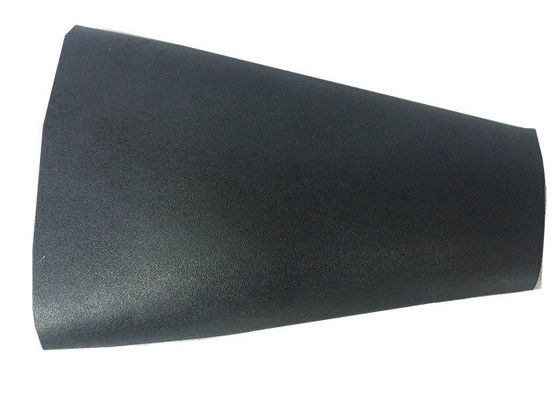

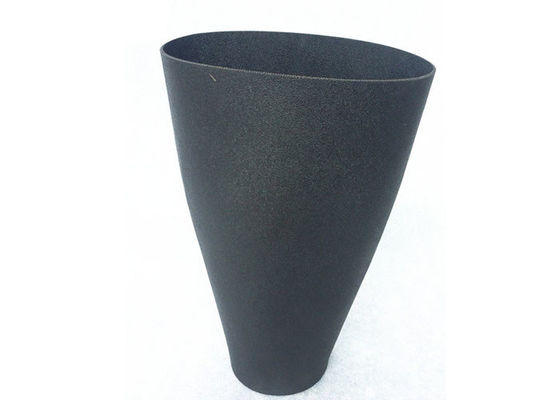

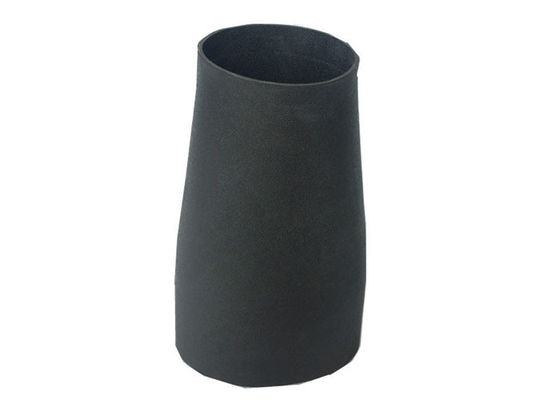

LR3 LR4 DISCOVERY 3 4 RANGE ROVER SPORT AIR SUSPENSION REPAIR KIT REAR RUBBER SLEEVE RTD501090 RPD500880 RPD000306
PRODUCT DESCRIPTION
GZ Bravo's range rover sport rear air suspension repair kit rear rubber sleeve mostly consists of 4 layers, one layer inner rubber, two layers cord fabrics and one outer rubber. The rubber use the imported Malaysia natural rubber and Chloroprene rubber. And the cord fabrics use the famous "Shenma" brand. Because of the strict raw material control and advanced technology, so our rubber sleeves can meet the same performance standard as Germany-made original rubber bellows. Only good rubber sleeve can support air suspension spring or air suspension shock long life.
| Item | Air Suspension Repair Kit |
| Vehicle For | Land Rover Range Rover Discovery 3 LR3 LR4 Rear |
| OEM Numbers | LR023234 LR023235 RTD501090 RPD501110 RDP500433 RDP500434 LR016402 |
| Material | Natural Rubber, Chloroprene Rubber,Cord Fabrics |
| A-End-Diameter | 162 MM |
| B-End-Diameter | 96 MM |
| Length | 310 MM |
| Thickness | 2.8 MM |
| Layers | 4 Layers |
| Hardness | Soft, High quality |
PRODUCT FIT FOR
2009 LR3 HSE Sport Utility 4-Door 4.4L 4394CC V8 GAS DOHC Naturally Aspirated
2009 LR3 SE Sport Utility 4-Door 4.0L 4009CC 245Cu. In. V6 GAS SOHC Naturally Aspirated
2009 LR3 SE Sport Utility 4-Door 4.4L 4394CC V8 GAS DOHC Naturally Aspirated
2008 LR3 HSE Sport Utility 4-Door 4.4L 4394CC V8 GAS DOHC Naturally Aspirated
2008 LR3 SE Sport Utility 4-Door 4.0L 4009CC 245Cu. In. V6 GAS SOHC Naturally Aspirated
2008 LR3 SE Sport Utility 4-Door 4.4L 4394CC V8 GAS DOHC Naturally Aspirated
2007 LR3 HSE Sport Utility 4-Door 4.4L 4394CC V8 GAS DOHC Naturally Aspirated
2007 LR3 SE Sport Utility 4-Door 4.0L 4009CC 245Cu. In. V6 GAS SOHC Naturally Aspirated
2007 LR3 SE Sport Utility 4-Door 4.4L 4394CC V8 GAS DOHC Naturally Aspirated
2006 LR3 Base Sport Utility 4-Door 4.0L 4009CC 245Cu. In. V6 GAS SOHC Naturally Aspirated
2006 LR3 HSE Sport Utility 4-Door 4.4L 4394CC V8 GAS DOHC Naturally Aspirated
2006 LR3 SE Sport Utility 4-Door 4.0L 4009CC 245Cu. In. V6 GAS SOHC Naturally Aspirated
2006 LR3 SE Sport Utility 4-Door 4.4L 4394CC V8 GAS DOHC Naturally Aspirated
2005 LR3 HSE Sport Utility 4-Door 4.4L 4394CC V8 GAS DOHC Naturally Aspirated
2005 LR3 SE Sport Utility 4-Door 4.0L 4009CC 245Cu. In. V6 GAS SOHC Naturally Aspirated
2005 LR3 SE Sport Utility 4-Door 4.4L 4394CC V8 GAS DOHC Naturally Aspirated
REFERENCE OE/OEM NUMBER
LR023234
LR023235
RTD501090
RPD501110
RDP500433
RDP500434
RPD501110
RPD501120
RPD501040
LR016402
LR016404
GZ BRAVO AIR SUSPENSION RUBBER SLEEVE MAIN CATALOGUE
| NO. | Car Brand | Car Model | Position | Length (MM) | SIZE ( Units MM) | ||
| Thickness (MM) | A-Outside Diameter | B Outside diameter | |||||
| A-OD | B-OD | ||||||
| 1 | Mercedes-Benz | W164/W251 | Front | 340 | 3.00 | 133 | 101 |
| 2 | Mercedes-Benz | W164/W251 | Rear | 360 | 3.00 | 137 | 106 |
| 3 | Mercedes-Benz | W220 | Front | 145 | 2.00 | 125 | 92 |
| 4 | Mercedes-Benz | W220 | Rear | 300 | 2.00 | 101 | 88 |
| 5 | Mercedes-Benz | W221 | Front | 145 | 2.00 | 128 | 96 |
| 6 | Mercedes-Benz | W221 | Rear | 155 | 2.00 | 132 | 96 |
| 7 | Mercedes-Benz | W211 | Front | 210 | 3.00 | 126 | 85 |
| 8 | AUDI | A6C5 | Front | 355 | 3.00 | 122 | 98 |
| 9 | AUDI | A6C5 | Rear | 400 | 3.00 | 105 | 95 |
| 10 | AUDI | A6C6 | Front | 190 | 2.50 | 124 | 88 |
| 11 | AUDI | Q7/Cayenne | Front | 260 | 3.00 | 144 | 94 |
| 12 | AUDI | Q7/Cayenne | Rear | 270 | 3.00 | 132 | 84 |
| 13 | AUDI | A8D3 | Front | 230 | 2.50 | 126 | 85 |
| 14 | AUDI | A8D3/Panamera | Rear | 230 | 3.00 | 122 | 96 |
| 15 | AUDI | A8D4 | Front | 190 | 2.50 | 126 | 88 |
| 16 | AUDI | A8D4 | Rear | 230 | 3.20 | 126 | 96 |
| 17 | BMW | E66 | Rear | 300 | 2.00 | 101 | 88 |
| 18 | BMW | E70 | Rear | 345 | 3.20 | 102 | 98 |
| 19 | BMW | E53 | Front | 310 | 3.00 | 140 | 96 |
| 20 | BMW | E53 | Rear | 340 | 3.00 | 128 | 80 |
| 21 | BMW | E39 | Rear | 287 | 3.00 | 127 | 80 |
| 22 | BMW | GT/E61 | Rear | 350 | 3.00 | 80 | 80 |
| 23 | BMW | F02/Phaeton Front | Rear | 200 | 2.50 | 128 | 93 |
| 24 | Land Rover | L322 | Front | 400 | 3.20 | 167 | 101 |
| 25 | Land Rover | Discover 3/Sport | Front | 340 | 3.00 | 122 | 96 |
| 26 | Land Rover | Discover 3/Sport | Rear | 310 | 2.80 | 162 | 96 |
| 27 | Porsche | Panamera | Front | 230 | 3.00 | 132 | 84.00 |
| 28 | Jaguar | XJ60,XJ70 | Front | 225 | 2.00 | 101 | 91 |
| 29 | Jaguar | XJ60,XJ70 | Rear | 225 | 2.00 | 101 | 91 |
