| Place of Origin: | China |
| Brand Name: | GZ Bravo |
| Certification: | ISO 9001:2015 |
| Model Number: | 1643206013 |
| Minimum Order Quantity: | 20 |
|---|---|
| Packaging Details: | 100 pieces in one carton box |
| Delivery Time: | 3-15days |
| Payment Terms: | T/T, Western Union,Credit Card, Ali Pay, Word First,etc. |
| Supply Ability: | 10000 Pieces/Months |
| Item: | Air Suspension Sleeve | OEM No.: | 1643206013 1643202213 1643204313 1643204613 1643205212 1643205813 |
|---|---|---|---|
| Material: | Natural Rubber, Chloroprene Rubber,Cord Fabrics | Vehicle For: | Mercedes Benz ML280 ML300 ML350 GL450 |
| Layers: | 4 Layers | Length: | 340 MM |
| Thickness: | 3.0 MM | A-OD: | 133 |
| B-OD: | 101 | Function: | Repair Air Suspension Spring |
| High Light: | Benz Ml Class shock absorber sleeve,1643206013 shock absorber sleeve,1643206013 |
||

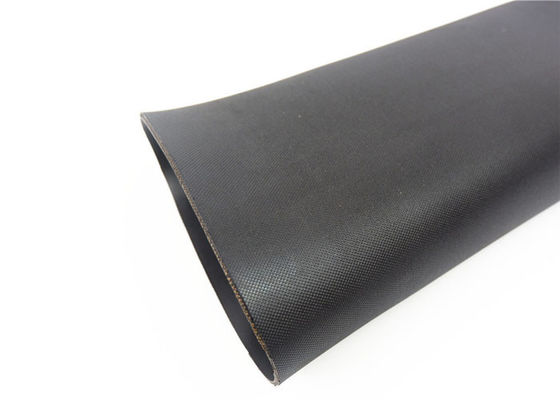

Mercedes Benz Ml Class W164 Front Air Suspension Sleeve Air Bellow 1643206013
PRODUCT DESCRIPTION
GZ Bravo's Air Suspension Rubber Sleeves mostly consists of 4 layers, one layer inner rubber, two layers cord fabrics and one outer rubber. The rubber use the imported Malaysia natural rubber and Chloroprene rubber. And the cord fabrics use the famous "Shenma" brand. Because of the strict raw material control and advanced technology, so our rubber sleeves can meet the same performance standard as Germany-made original rubber bellows. Only good rubber sleeve can support air suspension spring or air suspension shock long life.
| Item | Air Suspension Sleeve |
| Vehicle For | Mercedes-Benz GL ML Class ML280 ML300 ML320 ML350 GL350 GL450 |
| OEM Numbers | 1643206013 1643202213 1643204313 1643204613 1643205212 1643205813 |
| Material | Natural Rubber, Chloroprene rubber,Cord Fabrics |
| A-End-Diameter | 133 MM |
| B-End-Diameter | 101 MM |
| Length | 340 MM |
| Thickness | 3.0 MM |
| Layers | 4 Layers |
| Hardness | Soft, High quality |
PRODUCT FIT FOR
Mercedes-Benz
ML/GL-Class W164 X164 Front
ML 280
ML 300
ML 320
ML 350
ML 420
ML 450
GL 320
GL 350
GL 420
GL 450
GL 500
REFERENCE OE/OEM NUMBER
1643206013
1643202213
1643204613
1643205212
1643205813
1643206113
1643204413
1643204513
1643205913
GZ BRAVO AIR SUSPENSION RUBBER SLEEVE MAIN CATALOGUE
| NO. | Car Brand | Car Model | Position | Length (MM) | SIZE ( Units MM) | ||
| Thickness (MM) | A-Outside Diameter | B Outside diameter | |||||
| A-OD | B-OD | ||||||
| 1 | Mercedes-Benz | W164/W251 | Front | 340 | 3.00 | 133 | 101 |
| 2 | Mercedes-Benz | W164/W251 | Rear | 360 | 3.00 | 137 | 106 |
| 3 | Mercedes-Benz | W220 | Front | 145 | 2.00 | 125 | 92 |
| 4 | Mercedes-Benz | W220 | Rear | 300 | 2.00 | 101 | 88 |
| 5 | Mercedes-Benz | W221 | Front | 145 | 2.00 | 128 | 96 |
| 6 | Mercedes-Benz | W221 | Rear | 155 | 2.00 | 132 | 96 |
| 7 | Mercedes-Benz | W211 | Front | 210 | 3.00 | 126 | 85 |
| 8 | AUDI | A6C5 | Front | 355 | 3.00 | 122 | 98 |
| 9 | AUDI | A6C5 | Rear | 400 | 3.00 | 105 | 95 |
| 10 | AUDI | A6C6 | Front | 190 | 2.50 | 124 | 88 |
| 11 | AUDI | Q7/Cayenne | Front | 260 | 3.00 | 144 | 94 |
| 12 | AUDI | Q7/Cayenne | Rear | 270 | 3.00 | 132 | 84 |
| 13 | AUDI | A8D3 | Front | 230 | 2.50 | 126 | 85 |
| 14 | AUDI | A8D3/Panamera | Rear | 230 | 3.00 | 122 | 96 |
| 15 | AUDI | A8D4 | Front | 190 | 2.50 | 126 | 88 |
| 16 | AUDI | A8D4 | Rear | 230 | 3.20 | 126 | 96 |
| 17 | BMW | E66 | Rear | 300 | 2.00 | 101 | 88 |
| 18 | BMW | E70 | Rear | 345 | 3.20 | 102 | 98 |
| 19 | BMW | E53 | Front | 310 | 3.00 | 140 | 96 |
| 20 | BMW | E53 | Rear | 340 | 3.00 | 128 | 80 |
| 21 | BMW | E39 | Rear | 287 | 3.00 | 127 | 80 |
| 22 | BMW | GT/E61 | Rear | 350 | 3.00 | 80 | 80 |
| 23 | BMW | F02/Phaeton Front | Rear | 200 | 2.50 | 128 | 93 |
| 24 | Land Rover | L322 | Front | 400 | 3.20 | 167 | 101 |
| 25 | Land Rover | Discover 3/Sport | Front | 340 | 3.00 | 122 | 96 |
| 26 | Land Rover | Discover 3/Sport | Rear | 310 | 2.80 | 162 | 96 |
| 27 | Porsche | Panamera | Front | 230 | 3.00 | 132 | 84.00 |
| 28 | Jaguar | XJ60,XJ70 | Front | 225 | 2.00 | 101 | 91 |
| 29 | Jaguar | XJ60,XJ70 | Rear | 225 | 2.00 | 101 | 91 |
